Mica Heaters

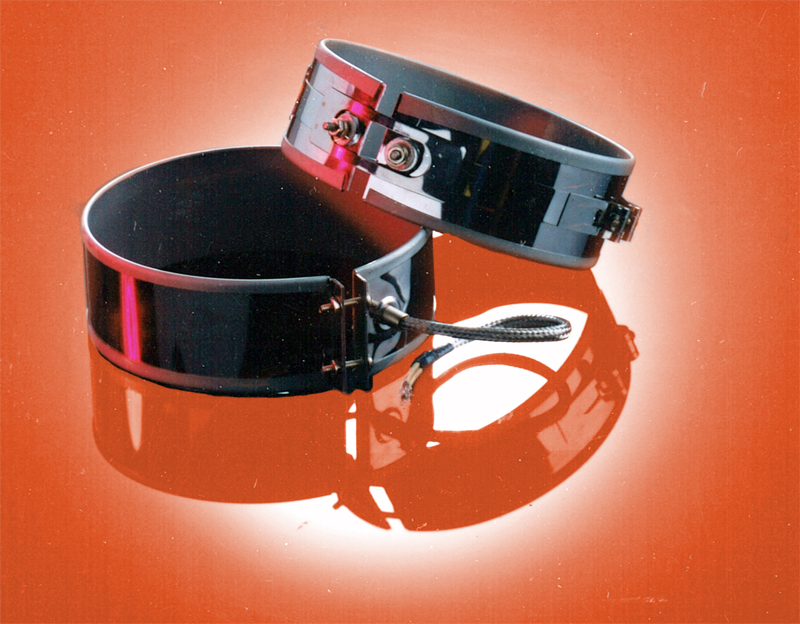

Mica Insulated Band Heaters

Delta mica insulation provides excellent dielectric strength, while permitting rapid and efficient heat migration through the sheath of the heater and into the object requiring heat. The use of mica allows the mass of the heater to be kept to a minimum, thus reducing weight, accelerating heat transfer, and keeping costs to a minimum. Delta mica bands are encased in various metals according to application needs. High-quality resistor ribbon or wire is precisely wound over mica cores and either terminated to stainless steel terminal posts designed to allow slippage rather than be twisted off, or connected to nickel alloy wires. Delta also offers sinusoidal cost effective heating.

Popular applications of mica insulated band heaters include: injection molding, extruders, autoclaves, blow molding, heating pipes, and laboratory tests.

For more information about mica insulated band heaters, download the Mica Insulated Band Heaters section of our product catalog or contact us to order

Mica Strip Heaters

Delta mica strip heaters provide rapid heat transfer to dies, tanks, sealing machines, hotplates, or other equipment possessing flat surfaces. The construction of mica strip heaters is closely identical to the mica band heaters. When ordered for use in grooved platens, should be ordered with our butt-case construction. Butt-case provides the means to transfer heat efficiently through both surfaces of the heater.

Popular applications of mica strip heaters include: packaging equipment, ovens, heated platens, blow molding machines, incubators, hot plates, laboratory test equipment.

For more information about mica strip heaters, download the Mica Strip Heaters section of our product catalog or contact us to order.

Mica Plate Heaters

Delta mica insulated Plate Heaters provide rapid and efficient heat migration through the sheath of the heater and into the object requiring heat. The use of mica allows the mass of the heater to be kept to a minimum, thus reducing weight, accelerating heat transfer, and keeping costs to a minimum. Delta mica heaters are encased in various metals according to application needs. High-quality resistor ribbon or wire is precisely wound over mica cores and either terminated to stainless steel terminal posts designed to allow slippage rather than be twisted off, or connected to nickel alloy wires. Delta also offers sinusoidal cost effective heater designs.

For more information about mica plate heaters, download the Mica Plate Heaters section of our product catalog or contact us to order.

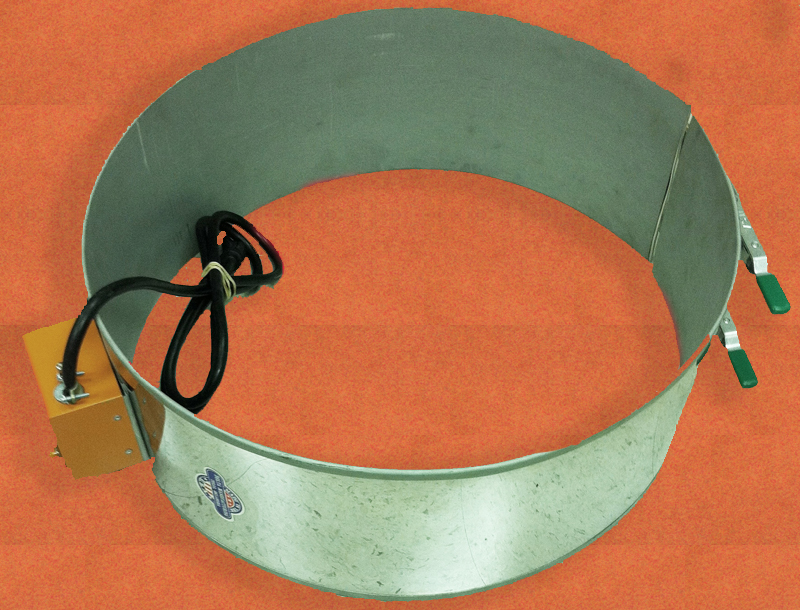

Mica Drum Heaters

Delta “wrap-around” drum heaters are designed with durable spring-loaded toggle clamps to ensure high clamping pressure, while being flexible enough for one person to attach and remove. Delta drum heaters are adjustable for normal drum dimension variation. Multiple heaters may be applied to a single drum for quicker or unusual heating requirements. Heaters are constructed of rust- and corrosion-resistant stainless or galvanized steel. Thermostatic controls are standard method of termperature regulation.

The unit is designed to allow quick transfer of such viscous materials as tar, adhesive, chocolate, molasses, paraffin, tallow, various petroleum products, etc., from standard 55, 30, or 5 gallon steel containers. Availability of two different types of controls permits the user to fit the heater to a specific application. This is important, because various materials have different heat transmissions and reaction characteristic. Neon pilot light indicates when the unit is on. Each heater includes compact contoured control box, improved clamping hardware, and an attached 6-foot power cord with an optional three-conductor plug for grounding.

Popular applications of drum heaters include: heating viscous materials, foundries, plastic coatings, bakeries.

For more information about drum heaters, download the Mica Drum Heaters section of our product catalog or contact us to order.

Mica Pail Heaters

Delta “wrap-around” drum heaters are designed with durable spring-loaded toggle clamps to ensure high clamping pressure, while being flexible enough for one person to attach and remove. Delta drum heaters are adjustable for normal drum dimension variation. Multiple heaters may be applied to a single drum for quicker or unusual heating requirements. Heaters are constructed of rust- and corrosion-resistant stainless or galvanized steel.

The unit is designed to allow quick transfer of such viscous materials as tar, adhesive, chocolate, molasses, paraffin, tallow, various petroleum products, etc., from standard 55, 30, or 5 gallon steel containers. Availability of two different types of controls permits the user to fit the heater to a specific application. This is important, because various materials have different heat transmissions and reaction characteristic. Neon pilot light indicates when the unit is on. Each heater includes compact contoured control box, improved clamping hardware, and an attached 6-foot power cord with a three-conductor plug for grounding.

Popular applications of drum heaters include: heating viscous materials, foundries, plastic coatings, bakeries.

For more information about pail heaters, download the Mica Pail Heaters section of our product catalog or contact us to order.

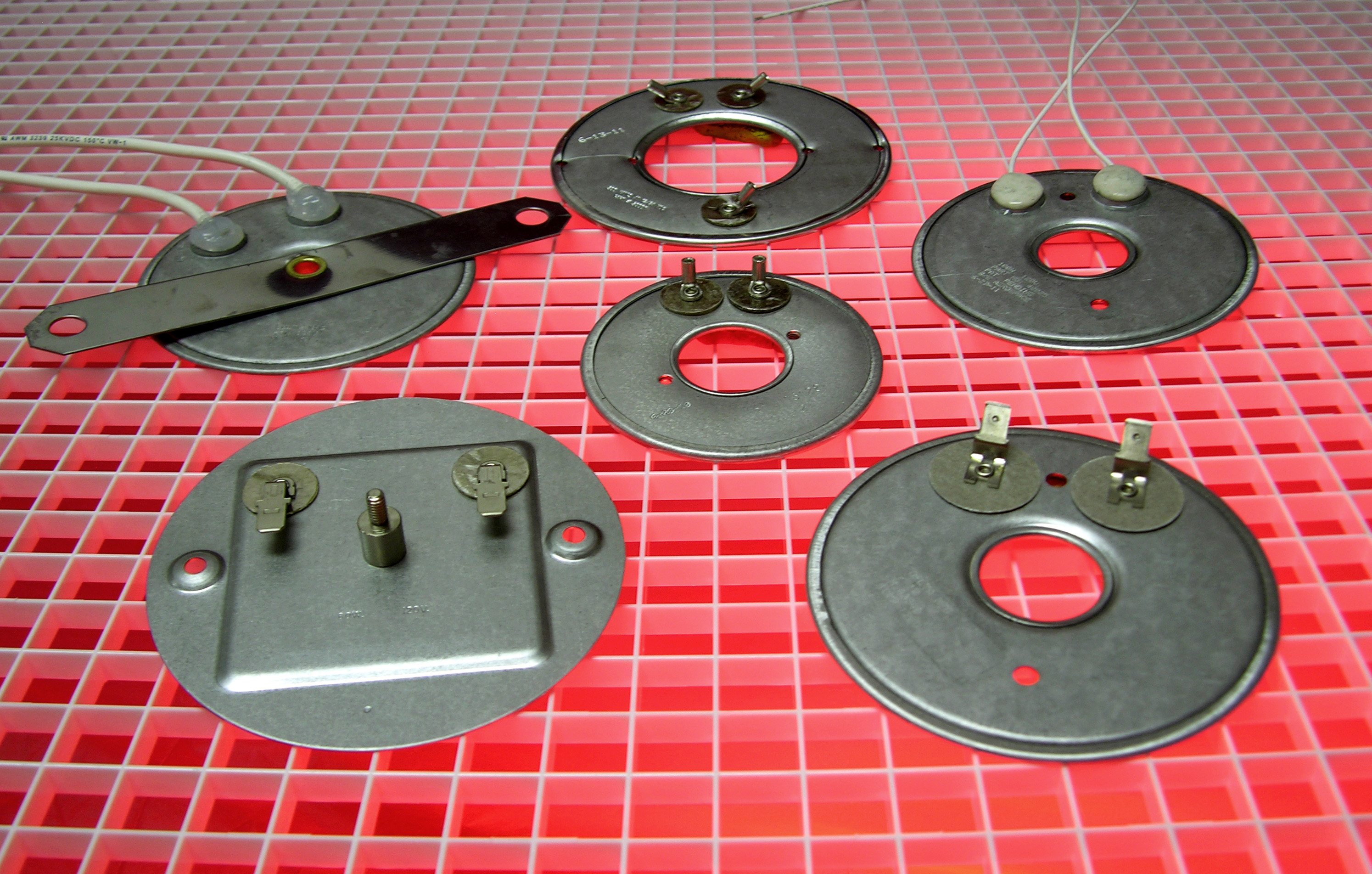

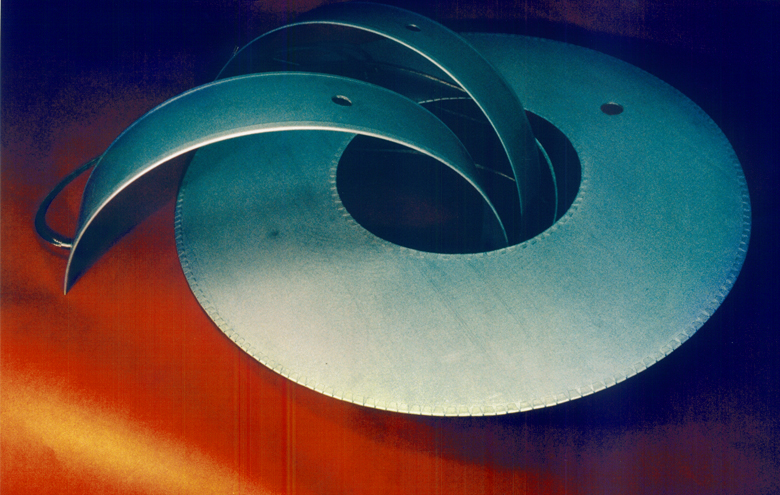

Mica Ring Heaters

Delta mica insulated ring and disc heaters provide dependable and even heat distribution. Constructed with quality components, long useful life has been the hallmark of these designs. Choose from coated carbon steel or stainless steel when selecting for your application.

Standard and custom designs are available in sizes from 3.5” to 48”. Typical applications range from commercial drink warmers to extrusion die heads, liquid storage tanks and filter assemblies.

Delta ring and disc heaters are designed using a variety of terminal connections, ie. Studs, quick disconnect, or flexible lead wires. While not one hundred percent hermetically sealed, seams and terminal exits are able to be protected through use of ceramic or RTV coatings.

Delta ring and disc heaters can be designed and produced in voltages as low as 12 VDC and up to 240 VAC.

For more information about mica ring heaters, download the Mica Ring Heaters section of our product catalog or contact us to order.

Mica Disc Heaters

Delta mica insulated ring and disc heaters provide dependable and even heat distribution. Constructed with quality components, long useful life has been the hallmark of these designs. Choose from coated carbon steel or stainless steel when selecting for your application.

Standard and custom designs are available in sizes from 3.5” to 48”. Typical applications range from commercial drink warmers to extrusion die heads, liquid storage tanks and filter assemblies.

Delta ring and disc heaters are designed using a variety of terminal connections, i.e. Studs, quick disconnect, or flexible lead wires. While not one hundred percent hermetically sealed, seams and terminal exits are able to be protected through use of ceramic or RTV coatings.

Delta ring and disc heaters can be designed and produced in voltages as low as 12 VDC and up to 240 VAC.

For more information about mica disc heaters, download the Mica Strip Heaters section of our product catalog or contact us to order.

Mica Racing Heaters

Delta Pro Racing heaters provide excellent dielectric strength, while permitting rapid and efficient heat migration through the sheath of the heater and into the object requiring heat. The use of mica allows the mass of the heater to be kept to a minimum, thus reducing weight, accelerating heat transfer, and keeping costs to a minimum. Delta mica bands are encased in various metals according to application needs. High-quality resistor ribbon or wire is precisely wound over mica cores and either terminated to stainless steel terminal posts or connected to nickel alloy wires.

Popular applications of Delta Pro Racing heaters are: preheating oil before qualifying, pre-race warm up, holding temperature while in pits, building nitrous tank pressure, dyno testing.

For more information about mica insulated band heaters, download the Mica Insulated Band Heaters section of our product catalog or contact us to order
